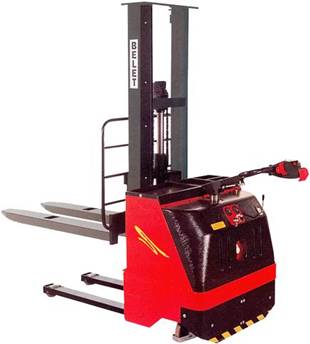

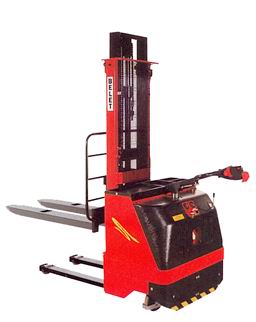

Vysokozdvižné ručně vedené vozíky
F 10 AP L
F 10 AP L 3
h 1600 mm
- 1000kg
h 2500 mm - 800 kg
h 3000 mm - 600 kg
Technické parametry:
|
typ |
F 10 AP L |
F 10 AP L 1,6 |
F 10 AP L 2,5 |
F 10 AP L 3,0 |
|
nosnost (kg) |
1000 |
1000 |
1000 |
1000 |
|

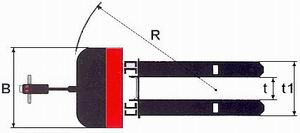

B (mm) |
865 |
865 |
865 |
865 |
|
H (mm) |
1990 |
1290 |
1740 |
1990 |
|
H1 (mm) |
1600 |
1600 |
2500 |
3000 |
|
H2 (mm) |
90 |
90 |
90 |
90 |
|
L (mm) |
1980 |
1980 |
1980 |
1980 |
|
L1 (mm) |
1180 |
1180 |
1180 |
1180 |
|
t (mm) |
220 |
220 |
220 |
220 |
|
t1 (mm) |
540 |
540 |
540 |
540 |
|
R (mm) |
1530 |
1530 |
1530 |
1530 |
|
baterie |
12V/240Ah |
12V/240Ah |
12V/240Ah |
12V/240Ah |
|
hmotnost (kg) |
640 |
660 |
700 |
740 |
